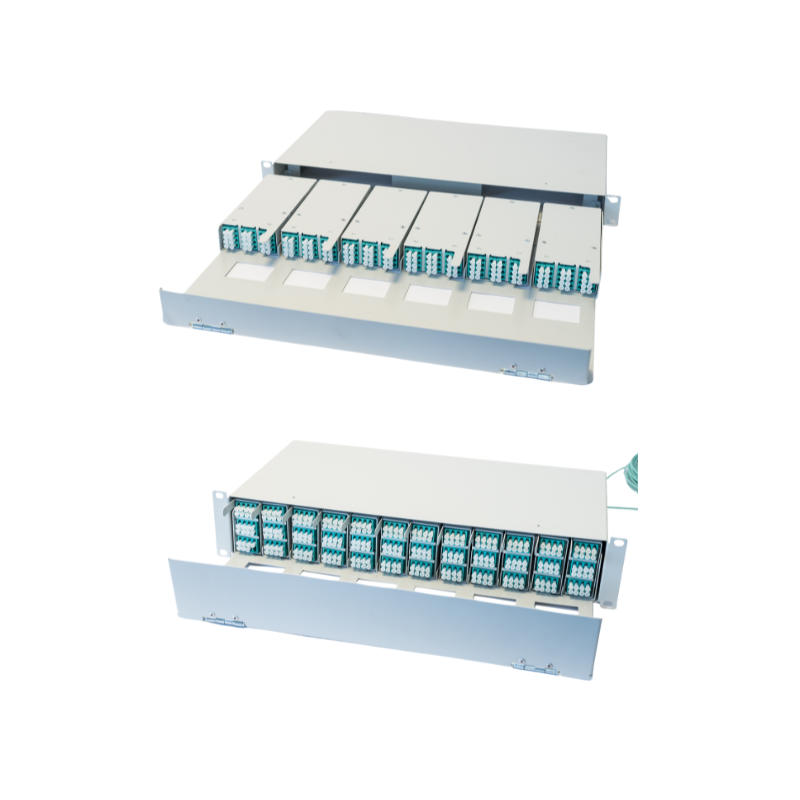

Fiber Optic Patch Panels MPO ORMP 1U and MPO ORMP 2U
| Inputs / Outputs (quantity × range) | open back side |
| Material | painted steel sheet (aluzinc) |
| Color | light gray RAL 7035 |
| Dimensions (H × W × D) | 44 / 88 × 483 × 350 mm |
| Weight | 3.4 / 3.8 kg |
| Environment | indoor |
| Number of Connectors | 1–12 13–24 25–48 49–72 73–96 97–144 145–288 |
| Connector Type | LC |
| 857J.10/005CF | Empty Module | |
| 857J.00/002CF | Fiber Optic Patch Panel MPO ORMP 1U | |
| 857J.30/002CF | Fiber Optic Patch Panel MPO ORMP 2U | |
| 857J.18/000CF | Set of Ranging Rings – back | |
| 85L8.C3/000CF | Set of Ranging Rings UHD ORMP 1U | |
| On request (MPO ORMP) | Module 6× LCQ MPO – OM3 (pre-assembled) |
The Fiber Optic Patch Panels MPO ORMP 1U and MPO ORMP 2U are designed to store up to 6/12 MPO/MTP modules, each with a capacity of up to 24 LC connectors. Both types of the patch panels are installed into a 19" rack and can be supplied preassembled.
- Capacity of up to 144× LC connector (for MPO ORMP 1U)
- Capacity of up to 288× LC connector (for MPO ORMP 2U)
- Increased corrosion resistance (aluzinc)
- High connector density
- Modular solution
- Optional adding of ranging rings
- Fixing modules using magnets
- Optional pre-assembly with adapters and pigtails
