Photo Gallery
  ORU 1 SIS ORU 2 SIS ORU 3 SIS
Inputs / Outputs (quantity × range) 3× 23–46 mm, 4× 9–24 mm 5× 23–46 mm, 3× 9–24 mm,
1× 15–19 mm / 21–25 mm, 3× 8–12 mm
12× 23–46 mm
Grommets (type and number of used grommets) 3× rubber grommet ø 50 mm,
4× rubber grommet ø 30 mm
5× rubber grommet ø 50 mm, 3× rubber
grommet ø 30 mm, 1× PG29, 3× PG13.5
12× rubber grommet ø 50 mm
Ingress Protection IP54 IP54 IP54
Impact Protection IK10 IK10 IK10
UV Resistance yes yes yes
Flammability Degree V0 V0 V0
Material glass reinforced polyester SMC glass reinforced polyester SMC glass reinforced polyester SMC
Color light gray RAL 7035 light gray RAL 7035 light gray RAL 7035
Dimensions (H × W × D) 1,200 × 390 × 350 mm 1,200 × 550 × 350 mm 1,600 × 550 × 350 mm
Weight 39 kg 45 kg 53 kg
8507.00/000SF ORU 1 SIS
8508.00/000SF ORU 2 SIS
8509.00/000SF ORU 3 SIS

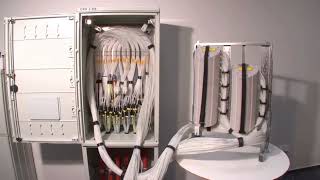

The Fiber Distribution Hubs ORU 1 SIS, ORU 2 SIS and ORU 3 SIS are designed as a multi-purposed distributor with hinged rack for assembly up to 4, 16, 24 splice modules SAFeTNET for terminating or connecting of optical cables in micro-ducts or HDPE protecting pipes. Their construction enables using outdoors. The pillars are installed in an open space in trench.

  • Maximum capacity 144, 576, 864 optical splices
  • Maximum number of splice modules SAFeTNET 4, 16, 24 pcs
  • Placement of optical fiber reserve, length 2.15 m, 3 m, 4 m
  • Possibility of connector panel installation for measurement
  • Possibility of oval grommet installation for undivided cable (so-called „OMEGA“)
  • Different sizes of the basement, heights 300, 500, 600, 700, 900 mm
  • Removable roof
